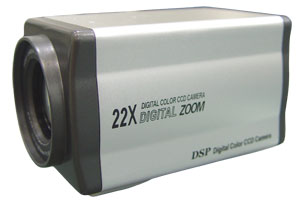

CCD-668D
1/4" SONY Super HAD CCD Colour Integrated Camera, 420TV Lines, X22 ZOOM

|
Specifications:
| MODEL |
CCD-668D |
| Pick-Up Device: |
1/4" SONY Super HAD CCD |
| Scanning Area: |
3.6mm(H)×2.7mm(V) |
| Picture Element: |
PAL:500(H) ×582(V) |
| View angle: |
4 ℃ 27' ~ 90 ℃ |
| TV System: |
PAL |
| Horizontal Resolution: |
420TV Lines |
| Minimum Illumination: |
0.1 Lux/F1.2 |
| S/N Ratio: |
More than 48dB |
| Auto Electronic Shutter: |
PAL: 1/50s ~ 1/100,000s |
| Auto Iris Control: |
Yes |
| Gamma Characteristic: |
0.45 |
| Auto Gain Control: |
ON/OFF Switchable |
| Auto White Balance: |
ON/OFF Switchable |
| Back-Light Compensation: |
ON/OFF Switchable |
| Synchronous System: |
Internal Synchronization |
| IR Control: |
No |
| Video Output: |
1.0V p-p, 75Ω, BNC Connector |
| Power Supply |
DC 12V |
| Power Consumption: |
150mA(400mA Control) |
| Operating Temperature: |
-10° C ~ +50° C |
| Focus: |
3.5-85mm |
| Dimensions(W*D*H): |
110mm×60mm×59mm |
|
