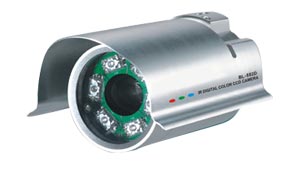

CCD-682D
Color Waterproof IR Camera, 420TV LINES with 60M (8pcs IR LED)
|
Specifications:
| MODEL |
CCD-682D |
| Pick-Up Device: |
1/3" SONY Super HAD CCD |
| Scanning Area: |
4.9mm(H)×3.7mm(V) |
| Picture Element: |
PAL:500(H) ×582(V) |
| TV System: |
PAL |
| Horizontal Resolution: |
420TV Lines |
| Minimum Illumination: |
IR ON 0Lux |
| S/N Ratio: |
More than 48dB |
| Auto Electronic Shutter: |
PAL: 1/50s ~ 1/100,000s |
| Auto Iris Control: |
____________________ |
| Gamma Characteristic: |
0.45 |
| Auto Gain Control: |
Auto |
| Auto White Balance: |
Auto |
| Back-Light Compensation: |
Auto |
| Synchronous System: |
Internal Synchronization |
| Lens Mount: |
Board lens:16mm |
| Video Output: |
1.0V p-p, 75Ω, BNC Connector |
| Infrared Lamps Irradiation Distance: |
60M |
| Protection Rate: |
IP66 |
| Power Supply: |
DC 12V |
| Power Consumption: |
120mA (IR ON, MAX 850mA) |
| Operating Temperature: |
-10 ° C ~ +50 ° C |
| Dimensions(W*D*H): |
Φ80mm×150mm |
| Focal Length: |
16mm |
| View angle: |
21°30' |
|
