CCD-808S/3

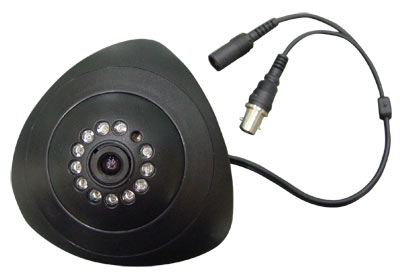

1/3" SONY Super HAD CCD Color IR Dome Camera, 12pcs IR LED, 15M, waterproof
|
Specifications:
| MODEL |
CCD-808S/3 |
| Pick-Up Device: |
1/3" SONY Super HAD CCD |
| Scanning Area: |
4.9mm(H)×3.7mm(V) |
| Picture Element: |
PAL: 500(H) ×582(V) |
| View angle: |
51 degree 38' |
| TV System: |
PAL |
| Horizontal Resolution: |
420TV Lines |
| Minimum Illumination: |
IR ON 0Lux |
| S/N Ratio: |
More than 48dB |
| Auto Electronic Shutter: |
PAL: 1/50s ~ 1/100,000s |
| Auto Iris Control: |
_____________ |
| Gamma Characteristic: |
0.45 |
| Auto Gain Control: |
Auto |
| Auto White Balance: |
Auto |
| Back-Light Compensation: |
Auto |
| Synchronous System: |
Internal Synchronization |
| Lens Mount: |
Board Lens: 6mm |
| IR Control: |
No |
| Video Output: |
1.0V p-p, 75Ω, BNC Connector |
| Infrared Lamps: |
15M |
| Power Supply |
DC 12V |
| Power Consumption: |
120mA (IR ON, MAX 200mA) |
| Operating Temperature: |
-10° C ~ +50° C |
| Focal Length: |
6mm |
| View Angle: |
76°16' |
| Dimensions(W*D*H): |
Φ108mm×65mm |
|
