WCMOS-414

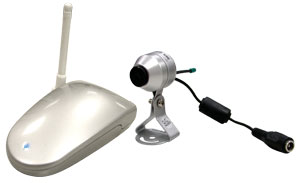

PAL 2.4G Wireless Mini size Colour Camera & Receiver .
|
Features:
- Built-in 2.4GHz RF modules, Transmitting range: 50m/150ft (Line of Sight)
- Coin size camera (2.6 x 2.6 x 2.7 cm) with microphone built in
- Camera in silver aluminium housing and 4 channels dip switch
- Package includes 9V battery clip (battery not included)
- Package includes a bracket for easy installation
- Receiver can connect to TV for display or DVR/VCR for recording.
- Auto-switching function enabled in receiver
Specifications:
|
TX |
RX |
|
(Camera) |
(Receiver) |
| Frequency: |
2.4GHz ~ 2.4835GHz |
| Transmitting Range: |
50m/150ft (Line of Sight) |
| Channel: |
4 |
| Channel Scan Period: |
N/A |
5 Sec |
| Video Format: |
PAL |
| H Resolution: |
330 Lines |
N/A |
| Operation Temp: |
14-122 ℉ / -10-50 ℃ |
| Power Consumption: |
<150mA |
200mA |
| Power Supply: |
9V/200mA Adapter |
12VDC/200mA Adapter |
| Output Power: |
CE<10mW / FCC<1mW |
N/A |
| Video Output: |
N/A |
1Vp-p / 75ohm |
| Audio Output: |
N/A |
1Vp-p / 600ohm |
| Audio Sub carrier: |
6.5MHz |
N/A |
| Size: |
26 x 26 x 27 mm |
123 x 82 x 36 mm |
| Weight: |
40g |
336.5g |
| Accessories: |
9V Adapter, Bracket with Swivel Base |
12VDC Adapter , AV Cable |
| Microphone: |
Built-in |
N/A |
| Approval: |
CE / R&TTE / FCC |
Camera Module:
- Lens: Board Lens F3.6mm
- Image Sensor: 1/3" Colour CMOS Sensor
- Pixel: 628×562 (PAL)
- Resolution: 330 Lines
- Illumination: 3 Lux
- E Shutter Speed: 1/60 - 1/15000 second
- S/N Ratio: >48 db
|
