High quality real time monitoring in D1 (720x572 PAL /720x480 NTSC, DVD quality) resolution
Quad or Mux mode recording with frame rate up to 30fps
Auto detecting video signal loss and HDD failure
Built-in 4 ch motion detection with adjustable sensitivity
Video signal looping for each input and output channel
Additional S-video output
Record 1 ch audio
4 ch sensors input and 1 ch alarm output

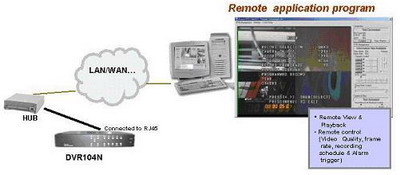

Connect to LAN/WAN enabling remote monitoring, recording, playback, backup and control of 4ch.video and 1ch audio
Video/Audio convertible from remote to PC readable AVI format
Available with built-in HDD rack
Multiple languages available for on-screen menu.
CE & FCC certified
Benefits:
Stand-alone, non-PC based DVR, no hassle of complicate Windows OS.
Robust system design with excellent reliability
Ideal for remote surveillance application
Maximum recording flexibility to accommodate local and remote recording requirement.
Affordable pricing with excellent performance
Easy installation with plug and play connection
Specifications:
Video
Input format:
NTSC, PAL

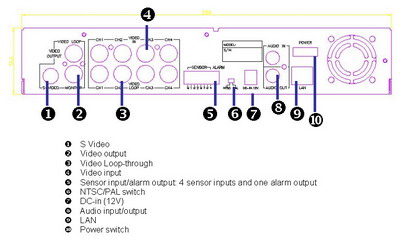

Input channel:
4, BNC
Output channel:
2 BNC and 1 S-video
Display Mode:
Quad, Full screen, Sequence
Frame rate
Display:
120fps, 100fps
Record
Quad(MUX) mode:
Max.30fps, Max.25fps
Each mode:
Max7.5fps Max.6.25fps
Resolution
Display:
720x480, 720x576
Recording:
640x224 640x272
Video Loss detection:
Auto detection with Buzzer
Motion detection:
4ch with adjustable sensitivity
Audio
Input/Output:
1ch/1ch RCA
Recording
Modes:
Continuous, Scheduled, Event, Motion trigger
Compression:
Modified MJPEG
Frame rate:
1~30fps, 1~25fps
Quality level:
High, Normal, Low
Storage
Hard Drive:
Capacity up to 250G 1HDD for fixed type
Playback:
By time, event
Sensors
Input:
4, Dry contacts
Output:
1, Dry contact
Network
Connection:
TCP/IP, RJ-45 fixed IP, password protected
Remote operation:
uto adjusted frame rate W/PCclient application Program
Video quality adjustable from remote
On-screen connection statistics
Power:
12V/4.1A, 50W 2.5ф DC Jack
Dimension
Bare unit:
slim case: 29x23x5.5cm with removable HDD rack:33x30x6cm
Packaged:
slim case: 45x29x10cm
with removable HDD rack:50x36x11.5cm
