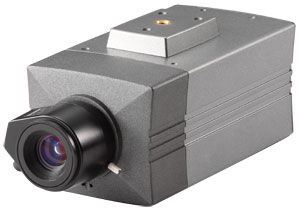

IP-580

IP Network Camera CCD MPEG4

Hardware Specification:

• CCD Sensor with IRIS Lens support

• Remote access alert image review

• Mpeg4 solution
  -Support HTTP, RTP/RTSP, TCP/IP, SMTP, FTP, PPPoE , DHCP (Dynamic Host Configuration Prtocol)

• Built-in web server allows camera to be accessed by standard Internet browser

• Network RJ45: 10Base-T/100Base
• TX Ethernet networks

• Network ready, IP addressable (no PC is required)

• MPEG4 based compression

• 3 different resolutions: 640x480, 320x240, 160x120

• Record AVI (video and audio) or Motion JPEG images on to remote PC hard disk for future viewing

Specification:

System

• Stand-alone network camera for flexible installation

• Simple installation and multiple mounting methods

• Embedded Web Server Supported

• No computer needed at the monitored site

• Access live video web browser any time, any place for remote surveillance and management
  -2 default HTTP Ports supported. They can be changed to fit different network environment

• Built-in Motion Detection for security with no extra cost

• Standard JPEG Image Format

• Record MPEG4 images to hard disk for future viewing

• Capture photos to your PC or camera

• Password protection, Supervisor password system for you to decide who is authorized to browse the camera, for E-mail and FTP alert
  -E-Mail the Detected images to preset FTP Server

• Direct connecting to ADSL by PPPoE, mail the IP setting to pre-set mail address
  -3 selectable image resolutions and 3 image quality settings
  -2 selectable frequency: 50Hz and 60Hz

• Unlimited number of users concurrently browsing the same camera
  -E-Mail notification for sharing or notifying information actively to the connected party

• Camera ID name configurable

• Web-based configuration interface

• LAN/WLAN interface supported

• Support Fixed IP or Dynamic IP by DHCP (Dynamic Host Configuration Protocol)

• DDNS Server support

• IP forwarding Server support

• Remote reboot

• On line Firmware update

• Hardware reset button

Video

• Support 640x480, 320x240, 160x120 video size
  -MPEG 4 Compression

• Support Outdoor and Indoor NTSC and PAL system (50Hz. 60Hz)

• 3 mode resolution 640x480, 320x240, 160x120 and 3 level video quality

Audio

• Audio format: PCM,ADPCM , AMR(for Mobile), G.726

• Built-in Microphone and External audio in RCA jack

• Audio switch, Internal MIC , External MIC and Mic OFF

Network

• LAN/WLAN Support

• Support Fixed IP or Dynamic IP by DHCP (Dynamic Host Configuration Protocol)

• HTTP Ports supported. They can be changed to fit different network environment

• DDNS Server support

• IP port number mapping

• Remote reboot

• Support Http, TCP/IP,RTP/RTSP, SMTP, FTP,PPPoE ,DHCP (Dynamic Host Configuration Protocol)

• Support NTP Server
  Camera Record and Alert

• Record MPEG4 images on to remote PC hard disk for future viewing

• Built-in Motion Detection for security with no extra cost

• E-Mail the Detected images to preset FTP Server
  Motion
• Detection area setting

• Password protection, Supervisor password system for you to decide who is authorized to browse the camera, for E-mail and FTP alert

• Support GPIO Event Trigger and Motion-Detection Event Trigger
  Camera Interface

• 10Base-T/100Base-TX Ethernet networks, RJ-45 connector

• GPIO Interface, (IN x 2 , OUT x 2 , VCC x1, GND x1)

• TV-Out BNC connector

• IRIS connector for Auto IRIS Lens

• Built-in Microphone
  -Audio-In, RCA connector

• DC 12V Power-in DC Jack connector
  -C / CS Lens molunt

• Reset button
  CCD Sensor

• Pick up Device: Sharp 1/4" CCD image sensor (Option SONY CCD Sensor)

• Picture Elements: H * V NTSC: 512 * 492 PAL: 512 * 582
  -Horizontal
• Resolution: more than 380 lines
  -Horiz.
• Sync Frequency: NTSC: 15.734 kHz.PAL: 15.625 khz

• Vertical Frequency: NTSC: 59.94hz - PAL:50hz

• Scanning System: 2:1 Interlace


Sensitivity:

• 1 Lux
  -Synchronization: Internal
  -S/N Ratio more than 48 db (AGC off)

• Electronic shutter: up to 1/100,000 sec. ( linear )auto

• White balance: Auto white balance

• Mount lens: 3.6mm f2.0
  -Gamma: 0.45
  -Video Output: 1 vpp,75 ohms
  -
• Auto gain control auto

• Flickless function build in

Accessories Include:

• IP-580 network camera

• Standard optical lens (Other lens optional)

• Voltage converter

• Cross network cable (red) for connection to PC Network card for product testing and setting

• Straight network cable (blue) for connecting to Network Switches, ADSL Router

• Installation CD

• Instruction manual

• Fixed mounting (optional)

Bundle Software:

• 16 video channels and schedule recorder

• IP Edit
