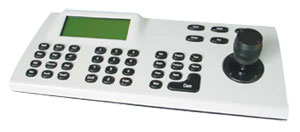

KB-801A

DC9V 5W 1200M communication distance 3D Controller Keyboard.

Features:

• Connect a 4 Controllers multi-control system

• LCD Display, Mistake Alarm, Easy Operation

• Long-Distance Control1200MRS4850.5mm Twisted-pair

• Control a 255 Rs485 Equipment Compatible with PELCO 3D Joystick

Specifications:

Power Supply

• Voltage DC 9V

• Power5W

Condition

• Circumstance Temperature-10~+50

• Relevant Humidity0~95%No Freeze

Physics

• Dimension378mm×160mm×69mm

• Weight1.0kg

Communication Port

• Connectivity TypeDj21 Six plugs And Rs232 Db9 Socket

• Interface TypeRS-485Semi duplex And RS-232

• Communication Rate2400/4800/9600/19200bps
• Communication Distance1200MRS-4850.5mm twisted-pair
