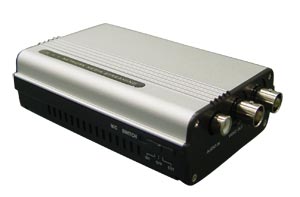

IP Network Media Streaming Box is an Internet-based digital media server. It compresses the video and audio source. Upload the compressed live video and audio into Intranet-Internet through Ethernet connection.
IP Network Media Streaming Box is a self-contained Web Server; users could access the AV IP-VIDEO SERVER by using standard Internet Browser such as IE or any other internet browser. Performing the management, configuration, and monitoring easily.
IP Network Media Streaming Box contains image compression chipset that is capable of delivering standard JPEG, MJPEG, and real-time video into network connection with limited bandwidth.
Hardware Specification:
| CPU: |
32 Bits RISC Processor (ARM7 Base) |
| ROM: |
2M Bytes Flash ROM |
| RAM: |
16M Bytes SDRAM |
| Internal Micphone: |
Yes (Built-in Micphone) |
| External Micphone: |
Yes (RCA Interface / ADPCM) |
| TV Out: |
Yes (NTSC and PAL) |
| Video size: |
640X480,320x240, 160x120, 352x288,176x144 |
| Video input: |
1 Channel BNC Connector |
| Video Output: |
1 Channel BNC Connector |
| Video-in Format: |
NTSC and PAL |
| Compression: |
Motion Jpeg |
| Frame Rate: |
18~20fps in Local LAN (VGA / 100MB) |
| Video record function: |
AVI, Video with Audio |
| Motion Detection: |
Yes |
| Audio Format: |
PCM, ADPCM |
| Power Adaptor DC Input: |
DC 5V/2A |
Networking
| Network Connection: |
RJ45: 10/100 Base-T |
| Protocols: |
TCP/IP, HTTP, FTP, SMTP, PPPoE, UPnP |
| DHCP: |
Support |
| Dynamic DNS (DDNS): |
Support (DynDns.org/orite DDNS / IPCAM DDNS) |
| Alarm Notification: |
Mail & FTP |
| Simultaneous Viewers: |
25 |
| View Through: |
IE, Palm. WIN CE |
| Multi-Monitoring: |
9 video |
| Audio I/F: |
Yes |
| Performance: |
Max. 800K Bytes per Second |
| UPnP support: |
Yes (Option) |
Software:
- Security:
- 3 layer password protection
- Software Upgrade: Yes/on line firmware update
- IP Cam Server Support: Yes
- IP Cam DDNS Server: Yes
- Dimension: 91x 65x53(mm)
- Weight: 310g
Bundle Software:
Accessories Include:
- IP-Box
- Power Adapter
- Red Colour 10/100 Mbps Ethernet LAN Cable (MDI / X, Cross over LAN cable)
- Blue Colour 10/100 Mbps Ethernet LAN Cable (MDI)
- IP-Box installation CD-ROM
- User's Manual
- Climbers with screws
- Warranty card
- Rubbers x 4
For PDA User: Palm OS / Win CE: |
