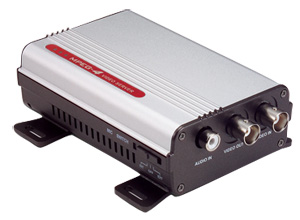

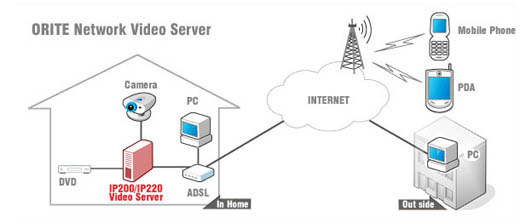

MPEG-4 Video Server Box is an Internet-based digital media server. It compresses the video and audio source. Upload the compressed live video and audio into Intranet-Internet through Ethernet connection.
MPEG-4 Video Server Box is a self-contained Web Server; users could access the AV IP-VIDEO SERVER by using standard Internet Browser such as IE or any other internet browser. Performing the management, configuration, and monitoring easily.
MPEG-4 Video Server Box contains image compression chipset that is capable of delivering standard MPEG-4, and real-time video into network connection with limited bandwidth.
Hardware Specification:
| Video Compress: |
MPEG-4 |
| Internal Micphone: |
Yes (Built-in Micphone) |
| External Micphone: |
Yes (RCA Interface / ADPCM) |
| TV Out: |
Yes (NTSC and PAL) |
| Video size: |
704x480, 704x240, 352x240, 176x120 |
| Video input: |
1 Channel BNC Connector |
| Video Output: |
1 Channel BNC Connector |
| Video-in Format: |
NTSC and PAL |
| Compression: |
MPEG-4 |
| Frame Rate: |
30fps |
| Video record function: |
MPEG-4, AVI, Video with Audio |
| Motion Detection: |
Yes |
| Audio Format: |
ADPCM, G.726 |
| Built: |
in RTC (Real Time Clock) |
| Power Adaptor DC Input: |
DC 5V/2A |
Networking:
| Network Connection: |
RJ45: 10/100 Base-T |
| Protocols: |
TCP/IP, DHCP, HTTP, FTP, SMTP,PPPoE, UDP, RTSP, SMS |
| DHCP: |
Support |
| Dynamic DNS (DDNS): |
Support (DynDns.org/orite DDNS / IPCAM DDNS) |
| Alarm Notification: |
Mail & FTP or SMS |
| Speed Dome Camera Control: |
YES |
| View Through: |
IE , QUicktime |
Software:
- Security: 3 layer password protection
- Motion Detection: YES
- OSD for Camera Name / Date / Time
- Auto Touring Setting for Speed Dome camera
- Control Speed Dome Camera PAN, TILT, ZOOM, Motor Move Speed
- 16 Camera position preset point
- Frame Rate setup
- Bit Rate Setup Bandwidth setup
- Built-in web server allows camera to be accessed by standard Internet browser
- 2 default HTTP Ports supported. They can be changed to fit different network environment
- Capture photos or record movie to your PC
- Send SMS the Detected images to preset mobile phone
- E-Mail the Detected images to preset e-mail
- FTP the Detected images to preset FTP Server
- Embedded Web Server Supported
- Firmware Upgrade: Yes/on line firmware update
Bundle Software:
Interface:
-
TV-IN (BNC)
- TV-OUT (BNC)
- Built-in Microphone
-Audio-IN (RCA)
|
