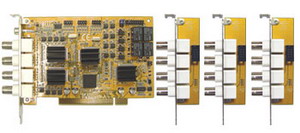

P878H-16
Four BT878 chipset with 16 channel, 4 Digital input and output, bundle PowerView professional.
|
Hardware Specifications:
| Modules name: |
P878H-16 |
| Capture Chip: |
Conexant 878A |
| Video Input(s): |
BNC x 16 |
| TV-Out: |
Yes |
| Total Recording Rate: |
120 fps (NTSC), 100 fps (PAL) (depend on CPU speed and Video-In channel amount) |
| Total Display Rate: |
120 fps (NTSC), 100 fps (PAL) |
| Video Resolution: |
320 x 240, 640 x 240 |
| Compression Format: |
MPEG4 (software compression) |
| Digital I/O: |
Digital 4 x In & 4 x Out |
| Watch Dog: |
Yes |
Software specifications:
- Compression Format: MJPEG, MPEG4
- Simultaneous recording, playback, and remote control
- Circular, Motion detection and Event triggered recording
- Able to adjust pre-alarm and post-alarm recording time (Pre-alarm recording: 10 seconds, Post-alarm recording: 300 seconds)
- Able to record event in the log file (System login and logout, motion detection and video loss)
- Allowing to set authority of all users (local monitor, local playback, PTZ control, remote surveillance, and remote playback)
- Allowing to search images by date, time, camera, and event
- Able to save image as Bitmap (*.bmp), JPG and. Avi format
- Watermark function
- Able to e-mail event list and event image to e-mail receiver phone, Mobile phone notification
- Able to view live video via PSTN, ISDN, LAN, Internet
- Able to do remote playback and setup
- Able to view live video and PTZ control by IE browser
- Able to connect 16 different recording servers (IP)
through the remote surveillance software (RX)
- Support DIO function -Support WDT function
OS Supported: Windows 2000/XP
Support Languages: Traditional Chinese, Simplify Chinese, English, French, Italian, Spanish. |
