Hardware Specifications:
| Modules name : |

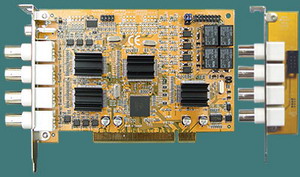

P878H-8 |
| Capture Chip : |
Conexant 878A |
| Video Input(s) : |
BNC x 8 |
| TV-Out : |
Yes |
| Total Recording Rate : |
120 fps (NTSC), 100 fps (PAL) (depend on CPU speed and Video-In channel amount ) |
| Total Display Rate : |
120 fps (NTSC), 100 fps (PAL) |
| Video Resolution : |
320 x 240, 640 x 240 |
| Compression Format : |
MPEG4 (software compression) |
| Digital I/O : |
Digital 4 x In & 4 x Out |
| Watch Dog : |
Yes |
Software specifications:
- Compression Format : MJPEG , MPEG4
- Simultaneous recording, playback, and remote control
- Circular, Motion detection and Event triggered recording
- Able to adjust pre-alarm and post-alarm recording time (Pre-alarm recording: 10 seconds, Post-alarm recording: 300 seconds)
- Able to record event in the log file (System login and logout, motion detection and video loss)
- Allowing to set authority of all users (local monitor, local playback, PTZ control, remote surveillance ,and remote playback)
- Allowing to search images by date, time, camera, event
- Able to save image as Bitmap(*.bmp), JPG and . AVI format
- Watermark function
- Able to e-mail event list and event image to e-mail receiver phone, Mobile phone notification
- Able to view live video via PSTN, ISDN, LAN, Internet
- Able to do remote playback and setup
- Able to view live video and PTZ control by IE browser
- Able to connect 16 different recording servers (IP) through the remote surveillance software (RX)
- Support DIO function -Support WDT function
OS Supported : Windows 2000/XP
Support Languages:
Traditional Chinese, Simplify Chinese, English, French, Italian, Spanish. |
