Description:

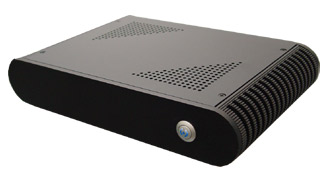

Neo Case was featured with Fan-Less system, Simple, Compact, Small, Stylish. It can be applied as Thin Client, Network Device, Set-Top Box, VPN, VOIP, DVR and POS system.
Major Material is Aluminum for good heat solution, for VIA C3 800Mhz - 1 GHz CPU System, NEO System can operate very well without CPU Cooling Fan and it can reduce the risk of Fan System Fail possibility. NEO System Case provides 1 x 2.5" Slim HDD Space.
Technical Data:
| Dimension: |
50 H x 275 W x 172 D mm |
| Dimension: |
50 H x 275 W x 236 D mm (FI855A) |
| Materia: |
Aluminum |
| Color: |
Black (option silver) |
| Weight: |
2 Kgs ( Include M/B |
| Storage Space: |
1 x 2.5" HDD |

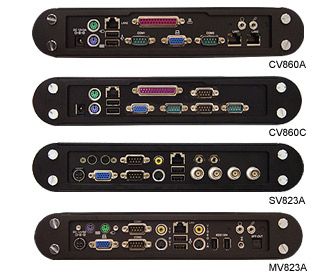

M/B information: ( Please reference M/B specification ):
| SBC Board Model |
Description |
| CV860A: |
1~3 Lan |
| CV862A: |
3 Lan |
| CV860C: |
4 Com Ports |
| CV863A: |
2 PCMCIA Slot / 4 Lan |
| CV866C: |
4 Com Ports, LVDS |
| SV823A: |
4-16 Video in |
| MV823A: |
2 IEEE1394 / Video in & TV-out, LVDS (option) |
| MV823S: |
1 Lan, TV-out |
| FI855A: |
TWIN-VIEW / LVDS / 4 COM Ports / PC 104 Plus / Mini PCI |
Option ( Function inside the case ) not for CV863A/CV863B:
| Wireless Lan |
Chip : ATMEL , USB Interface , 802.11b Standard , Driver: Win98,ME,2K,XP,Linux, 128bit WEP Encryption Support |
| 56K Modem(ST) |
Chip : ST , USB Interface , Driver : Win98,ME,2K,XP,Linux |
| 56K Modem(CX) |
Chip : Conexant , USB Interface , Driver : Win98,ME,2K,XP. |
| ISDN |
Chip : Cologne, ISDN Standard ETSI Euro ISDN, Driver: Win98,ME,2K,XP,Linux |
| ADSL |
Chip : Conexant , ANSI T1.413 Issue 2, ITU-T G.992( G.dmt ) and G.992.2(G.lite) Annex A,B . Driver : Win98,ME,2K,XP,Linux ( No WinCE) |
 |
