Description:

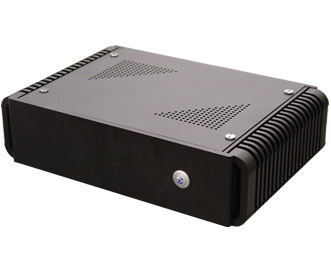

Twister Case was featured with Fan-Less system, Simple, Compact, Stylish. It can be applied as Thin Client, Network Device, Set-Top Box, VPN, VOIP DVR and POS system. Major Material is Aluminium for good heat solution, Twister System can operate very well with out CPU Cooler Fan for VIA C3 1G CPU and it can reduce the risk of Fan System Fail possibility.
Twister System Case provides 1 x 2.5" Slim HDD or 1 x 3.5" Standard HDD Space. Twister also provides 1 x PCI Slot space (with 2.5" HDD) for any function extension requirement.
Technical Data:
| Dimension: |
75 H x 300 W x 200 D mm |
| Dimension: |
75 H x 300 W x 248 D mm (FI855A) |
| Material: |
Aluminum |
| Color: |
Black |
| Weight: |
2.9 Kgs ( Include M/B ) |
| Storage Space: |
2.5" HDD or 3.5" HDD |
| PCI Slot: |
1 (Only available with 2.5" HDD) |
M/B information: (Please reference M/B specification):
| SBC Board Model |
Description |
| CV860A: |
1~3 Lan |
| CV862A: |
3 Lan |

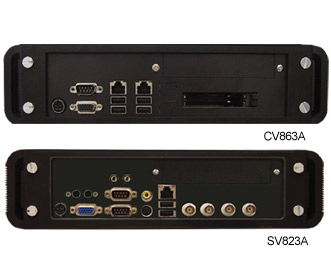

| CV863A: |
2 PCMCIA Slot / 4 Lan |
| SV823A: |
4-16 Video in |
| MV823A: |
2 IEEE1394 / Video in & TV-out, LVDS (option) |
| MV823S: |
1 Lan, TV-out |
| FI855A: |
TWIN-VIEW / LVDS / 4 COM Ports / PC 104 Plus / Mini PCI |
Option ( Function inside the case ):
Wireless Lan: |
Chip : ATMEL , USB Interface , 802.11b Standard , Driver: Win98,ME,2K,XP,Linux, 128bit WEP Encryption Support |
| 56K Modem(ST): |
Chip : ST , USB Interface , Driver : Win98,ME,2K,XP,Linux |
| 56K Modem(CX): |
Chip : Conexant , USB Interface , Driver : Win98,ME,2K,XP. |
| ISDN: |
Chip : Cologne, ISDN Standard ETSI Euro ISDN,
Driver : Win98,ME,2K,XP,Linux |
| ADSL: |
Chip : Conexant , ANSI T1.413 Issue 2, ITU-T G.992( G.dmt ) and G.992.2(G.lite) Annex A,B . Driver : Win98,ME,2K,XP,Linux ( No WinCE) |
|
